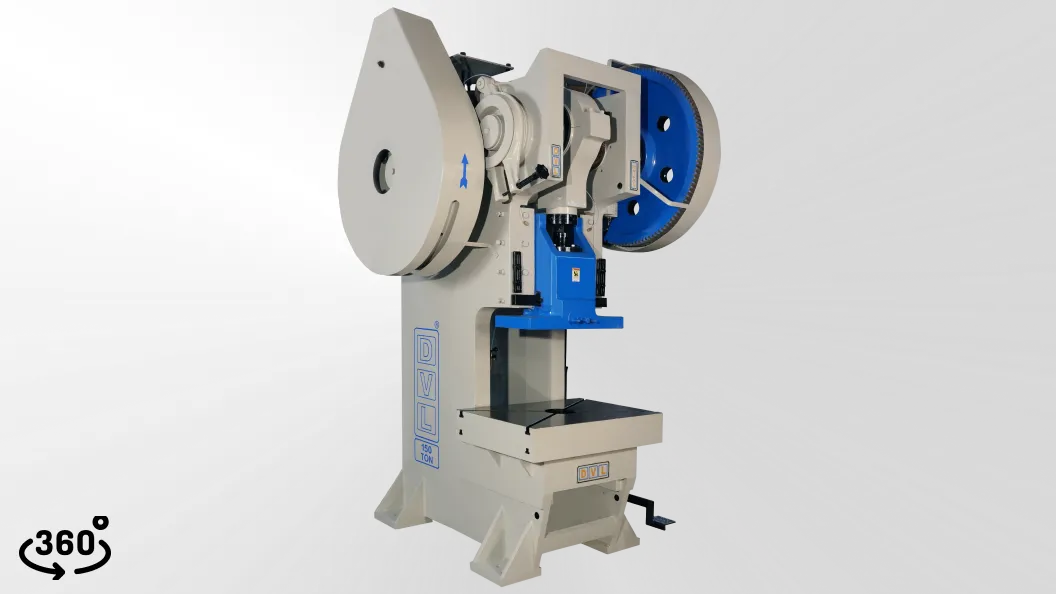

150 Ton Power Press Machine

Owing to our sophisticated manufacturing facilities, we have been able to offer C Type Power Presses. These presses find their extensive applications in different applications in multifarious industries. Various stringent tests are applied on these power presses on different parameters by the quality analyzers of our organization to ensure their quality and excellent performance. Further, we offer these power presses to the customers at market-leading prices.

150 Ton Power Press Machine

• Capacity: 150 Tons
• Crank Shaft Diameter: 140 mm
• Stroke Length: 127 mm
• Number of Strokes Per Minute: 30
• Table Size (Left to Right): 965 mm
• Table Size (Front to Back): 685 mm
• Hole in Boster: 180 mm
• Hole in Ram: 55 mm
• Bed to Ram Distance: 480 mm
• Floor to Boster Height: 885 mm
• Power Requirement (HP/kW): 15 HP / 11.25 kW
• Approximate Weight: 7000 kg
