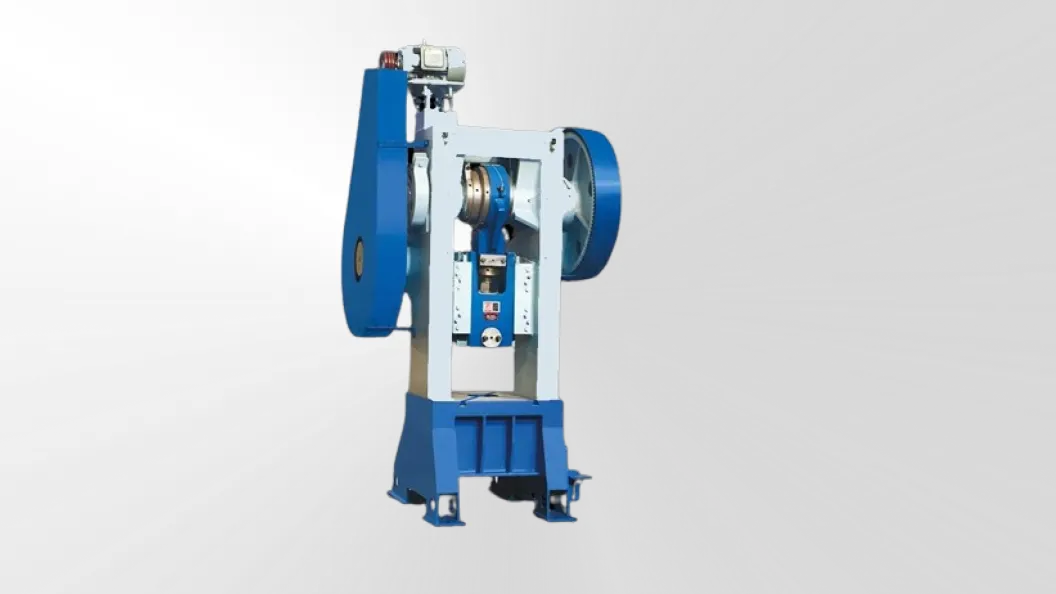

H Type Power Press Machine
Our H-Type Power Press Machines are engineered for precision, strength, and durability, making them ideal for a variety of industrial applications. These machines are designed to deliver high performance and reliable operation, ensuring you get the best results every time.
- Capacity: 30 Tons
- Crank Shaft Diameter: 83 mm
- Stroke Length: 90 mm
- Number of Strokes Per Minute: 60
- Table Size (Left to Right): 584 mm
- Table Size (Front to Back): 406 mm
- Hole in Boster: 90 mm
- Hole in Ram: 38 mm
- Bed to Ram Distance: 335 mm
- Floor to Boster Height: 790 mm
- Power Requirement (HP/kW): 3 HP / 2.25 kW
- Approximate Weight: 1500 kg
Description
- Shape: Named for its H-shaped frame, also known as a straight-side press.
- Design:he frame consists of two vertical columns and a horizontal bed, offering high rigidity and stability.
Advantages
- Rigidity: Very rigid and stable, with minimal deflection, which is crucial for precision operations.
- Strength: Capable of handling heavy-duty operations and large workpieces.
- Uniform Force Distribution: Provides even pressure distribution across the workpiece.
Disadvantages
- Size: Larger and bulkier, requiring more floor space.
- Accessibility: Less accessible from the sides compared to C-type presses.
